Auto Fastener Din 6927 Prevailing Torque Nut M8 Class 10 With Non - Metallic Insert

Product Categories

Shanghai Summery Industrial Machine Co. , Ltd.

Contact Now

Auto Fastener Din 6927 Prevailing Torque Nut M8 Class 10 With Non - Metallic Insert

Name: Auto Fastener Din 6927 Prevailing Torque Nut M8 Class 10 With Non Metallic Insert
Brand: summery
Price: 1 USD

Buy cheap Auto Fastener Din 6927 Prevailing Torque Nut M8 Class 10 With Non - Metallic Insert product

Brand Name : summery

Model Number : DIN6927

Certification : ISO7044

Place of Origin : China Shanghai

MOQ : Negotiable

Price : Negotiation

Payment Terms : Western Union, L/C, D/A, D/P

Supply Ability : 10000000

Delivery Time : 7-10days

Packaging Details : Poly bags

Product name : Prevailing torque type all-metal Hex flange nut

Material : steel

Project : DIN6927/ISO7044

Size : M8

Grade : 10

Surface : dacromet

Contact Now

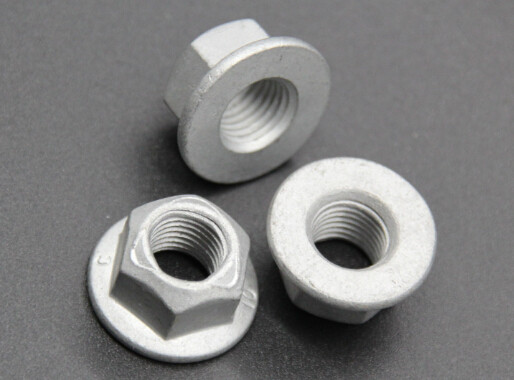

Prevailing torque type all-metal Hex flange nuts

This International Standard specifies the characteristics of prevailing torque type all-metal hexagon flange nuts and threads from M5 to M20 inclusive, in product grade A for threads up to and including M16 and product grade B for threads above M16, and with property classes 8, 9, 10 and 12.

Hex flange nuts hardness test

For routine inspection, hardness tests may be carried out on the bearing surface of the nut and the hardness shall be taken as the mean of three values spaced 120" apart. In case of dispute, the hardness tests shall be carried out on a longitudinal section through the nut axis and with impressions placed as close as possible to the nominal major diameter of the nut thread.

The Vickers hardness test is the reference test and where practicable a load of HV30 shall be applied.

Auto Fastener Din 6927 Prevailing Torque Nut M8 Class 10 With Non - Metallic Insert

Hex flange nuts figure

Product Tags:

prevailing torque lock nut

prevailing torque type hex nut

Auto Fastener Din 6927 Prevailing Torque Nut M8 Class 10 With Non - Metallic Insert Images
